Building Integrated Photovoltaic (BIPV) Glass Production
The fully automatic BIPV glass production line supports both BIPV glass and laminated glass production.
It automates glass pane loading, washing, assembly, and pre-lamination while integrating multiple BIPV glass manufacturing processes into one continuous production flow.
With ± 0.3 mm assembly accuracy and a finished-product yield of up to 99%, the glass production line is ideal not only for BIPV glass, but also for Low-E glass, laminated glass, and other safety glass products.
Features- Supports both automatic and easy manual operation.
- Integrates with MES (manufacturing execution system) for intelligent control and real-time production data collection, with remote order monitoring (mobile devices supported).
- Delivers energy-efficient, low-maintenance operation.
- High-performance convection heating reduces energy consumption by 30% compared with conventional systems, while stainless-steel heating elements ensure a long service life.

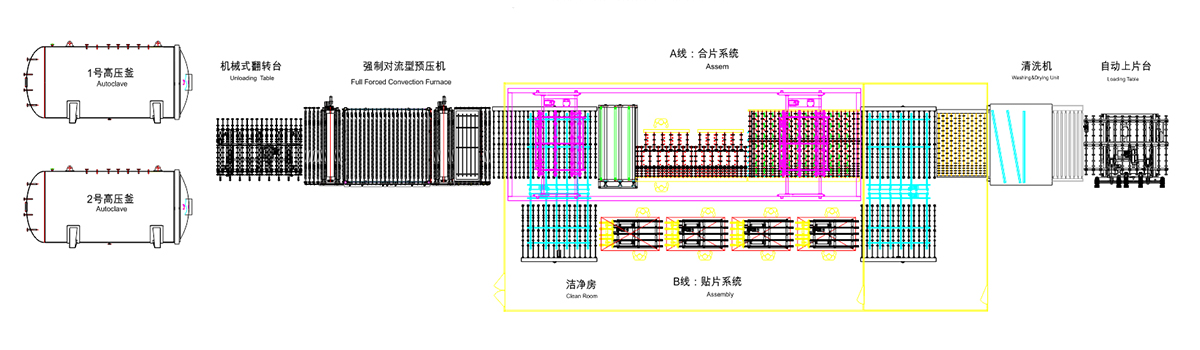

- Flexible production layouts, including U-shaped, L-shaped, and parallel configurations.
- Employs multiple safety measures—including protective covers, safety fencing, and radar sensors.
- Automatic Glass Loading Machine
Automatically loads glass panes onto the production line. - Glass Washing Machine
Automatically washes and dries the glass to ensure a clean surface for downstream processing. - Glass Transfer Table
Automatically guides the glass to the appropriate downstream station. - Automatic Positioning
Precisely positions the glass to ensure accurate layup and alignment. - PVB/SGP Film Roller

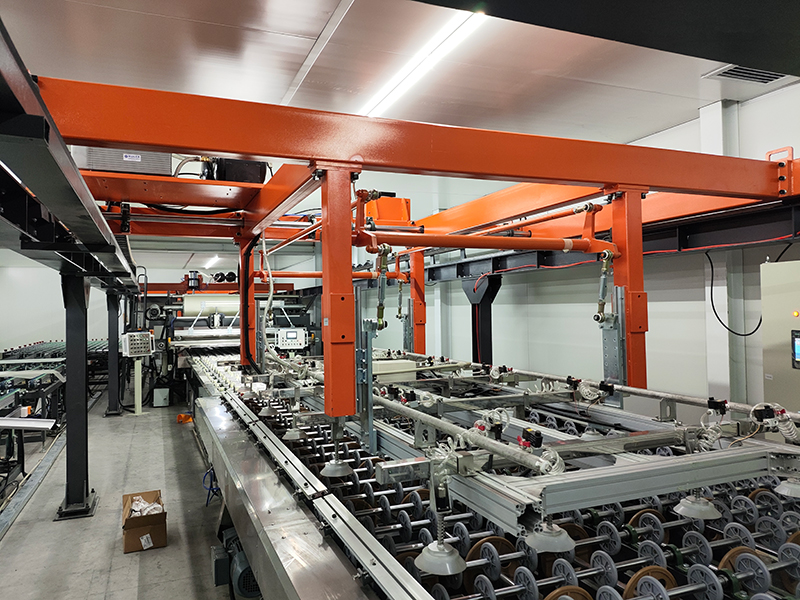

Applies interlayers and supports a configurable number of film rolls. - Glass Vacuum Lifter

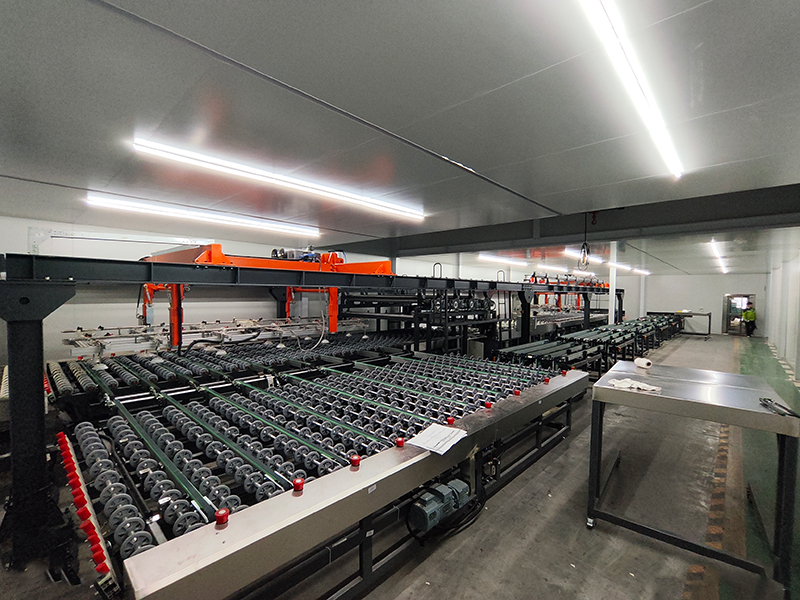

Automatically lifts and assembles the glass sheets. - Assembly Table
Supports continuous lamination of BIPV glass. - Pre-Lamination System
Pre-lamination press process (convection-controlled). - Autoclave
Completes the final lamination process under high temperature and pressure.
| Max. Glass Size | BIPV Glass: 3300 × 6000 mm; Laminated Glass: 3300 × 20000 mm; customizable |
| Min. Glass Size | 420 × 420 mm (corner-first loading, with passage from the washing machine to the pre-lamination; manual loading and unloading) |
| Glass Thickness | 3–19 mm |
| Pre-Lamination Thickness | 6–100 mm |
| Assembly Accuracy | ±0.3 mm |
| Vacuum Lifter Travel Speed | 60 m/min, servo-driven |
| Buffer Conveyor Speed | 30 m/min, variable-frequency drive |
| Compressed Air Pressure | 0.6–0.8 MPa |
| Total Installed Power (Varies by configuration) | Laminated Glass Production Line: Approx. 385.1 kW; BIPV Glass Production Line (excluding autoclave): Approx.19.7 kW; Autoclave BGF3380 (excluding the compressed-air system and external water pumps): Approx. 405 kW; Autoclave BGF30120 (excluding the compressed-air system and external water pumps): Approx. 570 kW |
| Power Supply | AC 380 V (+5%/−10%), three-phase system, 50 ± 2 Hz; configurable for local power standards |
