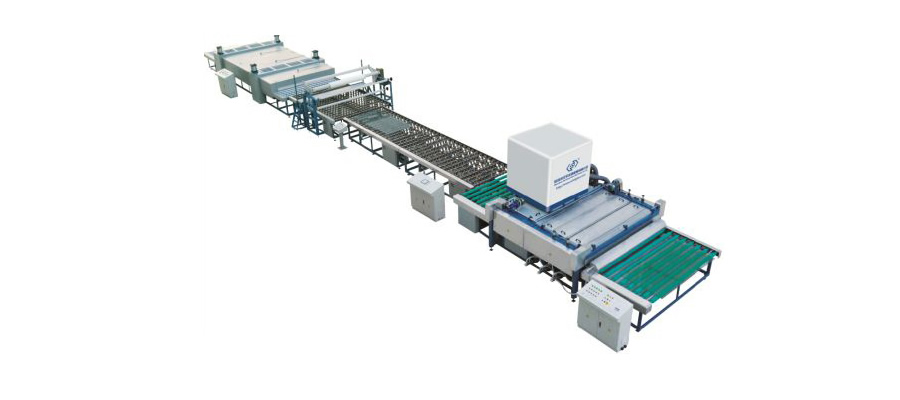

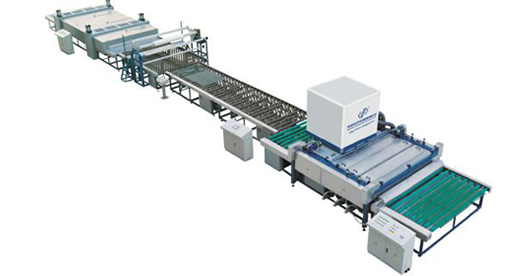

Semi-Automatic Laminated Glass Production Line
Handong provides state-of-the-art semi-automatic laminated glass production line, which consists of glass washing machine, glass conveying system, transfer unit with suction cups, manual PVB film laying system, pre-pressing system, assembly room, autoclave, etc. As a professional glass machinery manufacturer, all our glass processing machines are designed with the highest efficiency, accuracy and stability to exceed your expectation. Whether you want to produce bulletproof glass, architectural glass or safety glass, our laminated glass manufacturing machines are fully capable to fulfill all your needs.
Features- PLC control system and touch screen for easy operations;
- Good coherence and synchronization between different line sections to ensure smooth operations and high working efficiency;
- Excellent cost-effectiveness;
- Suitable for laminated glass with special shapes or sizes.
- Max. glass size: 3300 mm *8000mm
- Min. glass size: 300 mm *300 mm
- Glass thickness: 4 mm -80 mm
- Architectural curtain wall glass
- Bulletproof glass

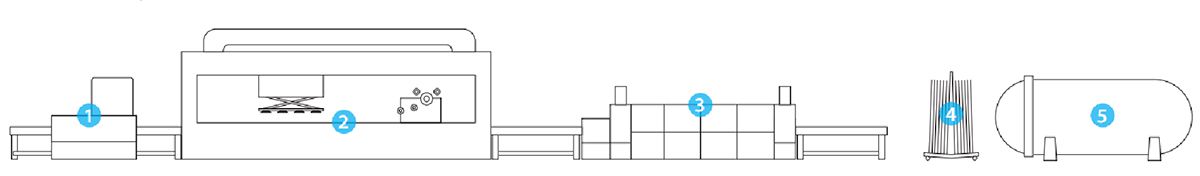

- 1) Washing and drying machine
- 2) Assembly room
- 3) Pre-pressing system
- 4) Autoclave trolley
- 5) Autoclav
| Model | Max. glass size ( mm ) | Min. glass size ( mm ) | Glass thickness ( mm ) | Speed (m/min) | Power (kW) |
| JC1660-HD | 1600*6000 | 300*300 | 4-40 | 0-2.5 | 110.32 |
| JC2060-HD | 2000*6000 | 300*420 | 4-80 | 0-2.5 | 130.82 |
| JC2560-HD | 2500*6000 | 300*420 | 4-80 | 0-2.5 | 147.32 |
| JC3060-HD | 3000*6000 | 300*450 | 4-80 | 0-2.5 | 181.05 |
| JC3280-HD | 3200*8000 | 300*450 | 4-80 | 0-2.5 | 195.77 |
| JC3380-HD | 3300*8000 | 300*450 | 4-80 | 0-2.5 | 201.17 |
