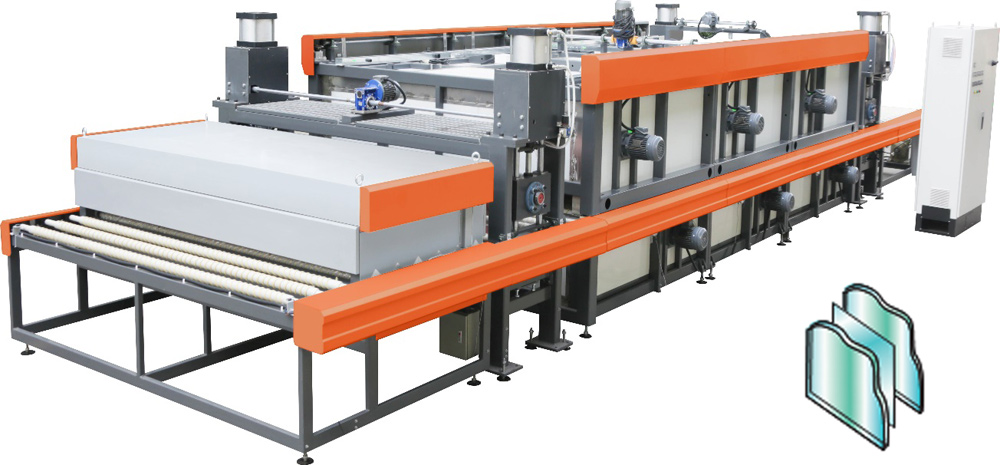

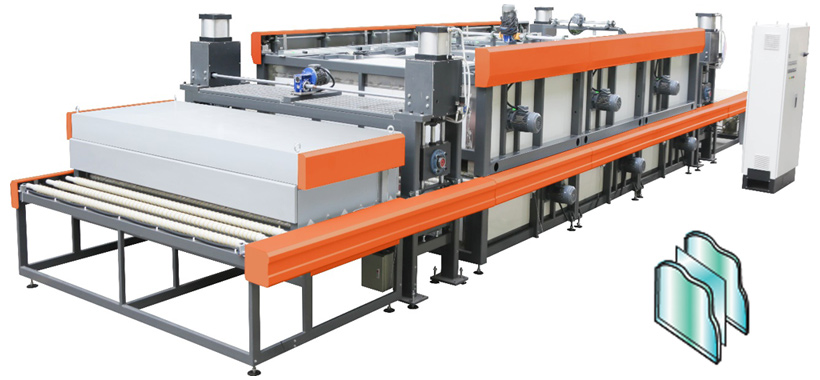

Forced Convection Pressing Machine
Features
- Suitable for handling a wide range of laminated glass types, including tempered flat laminated glass, low-E laminated glass, SGP laminated glass, BIPV laminated glass, etc.
- Exceptional product quality: The full forced convection type utilizes a cross-type air grid structure, ensuring uniform air pressure and automatic temperature adjustments.
- Enhanced production efficiency: The full forced convection heating system significantly improves the heat exchange rate, enabling a 30% faster production compared to standard pre-pressing machines.
- Streamlined automation: The automatic control system features PLC centralized control, PID automatic temperature adjustment, and menu management for efficient and precise operations.
| Model | Max. glass size (mm) | Glass thickness (mm) | Speed (m/min) | Installed power (kW) |
| | 1800*6000 | 4-80 | 0-5 | 249 |
| | 2000*6000 | 4-80 | 0-5 | 251 |
| | 2500*6000 | 4-80 | 0-5 | 255 |
| | 3000*8000 | 4-80 | 0-5 | 260 |
| | 3300*8000 | 4-80 | 0-5 | 265 |
| 3600*8000 | 4-80 | 0-5 | 270 |
