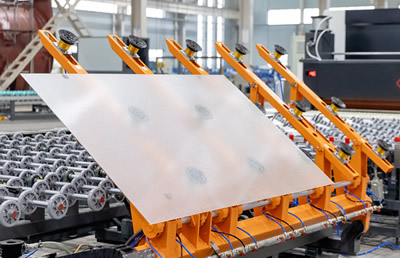

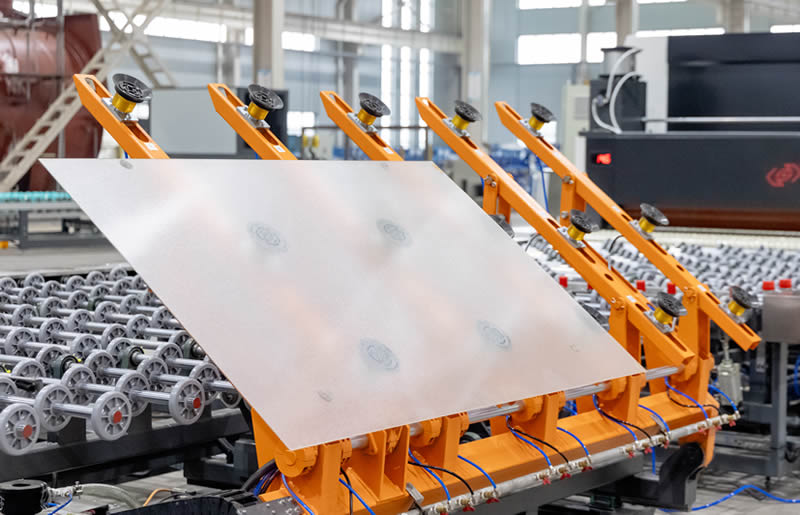

Automatic Glass Loading Machine

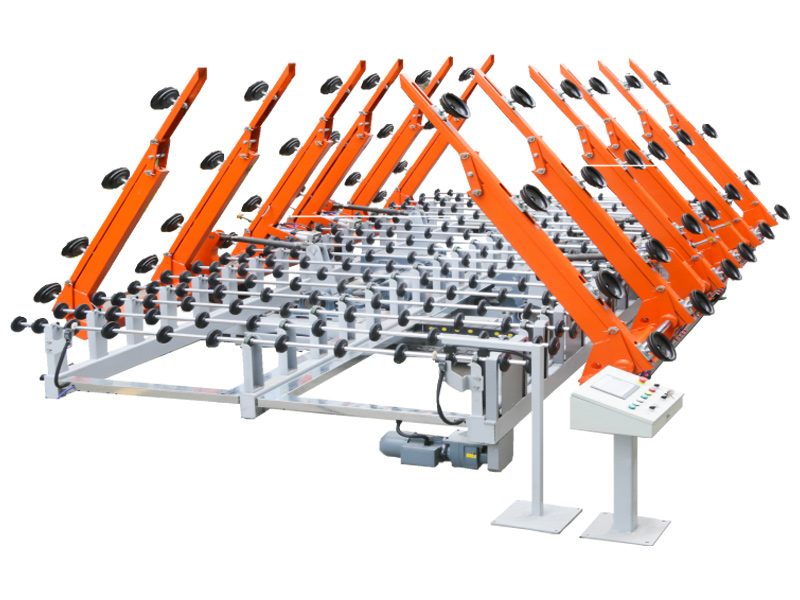

Automatic glass loading table

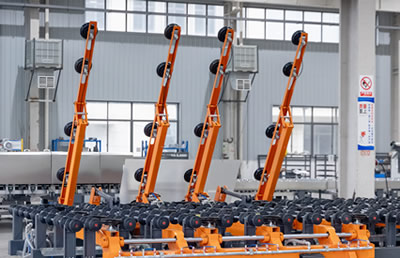

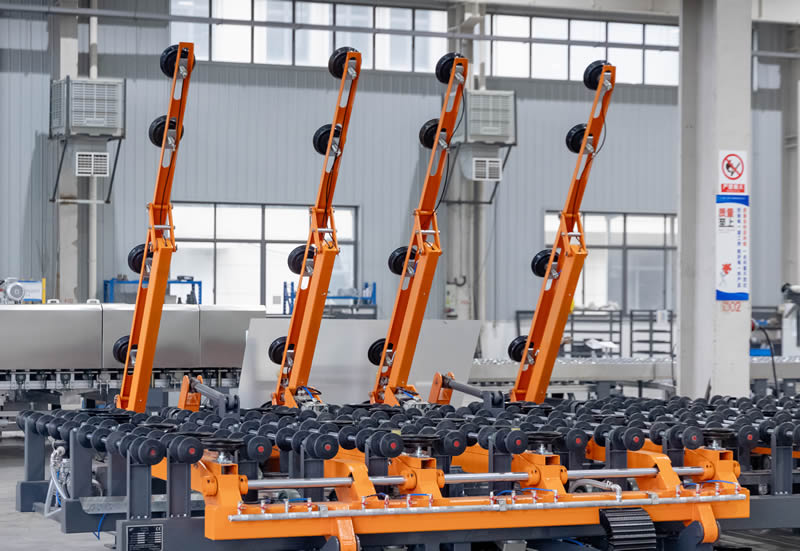

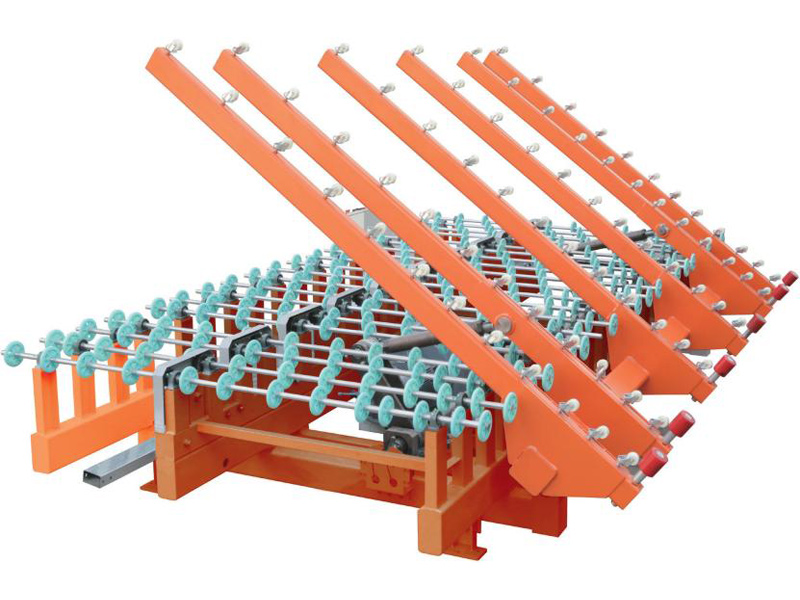

Mechanical tilting table for unloading Handong automatic loading and unloading machine adopts the driving mode of mechanical sucker arm. The overall design is compact,and the reduction motor directly drives the turning arm through four connecting rods to turn over,which reduces and even avoids unnecessary errors during processing and assembly. It makes the driving more stable and smooth,which can connect seamlessly with various types of glass cutting equipment.
- SIMENS PLC control system for high control precision.
- Stable, reliable, and precise tilting arms.
- Suction cup vacuum lifter features mechanical transmission design and delivers stable and reliable glass handling operations.
- Fully automatic operations reduce labor cost and decrease human injury risk without close contact to glass.
- Complete protection devices for electrical system.
- Electrical components are branded products to ensure the quality, such as AirTac Cylinder and PUXU vacuum pump.
- The automatic glass loading machine is designed with the simplest operations and the highest productivity.
| Model | Glass size (mm) | Tilting angle (°) | Loading capacity (kg) | Min. loading time (s/glass sheet) | Installed power (kW) |
| SP1711-HD | 1700x1100 | 98° ±2° | 100 | 12 | 3.55 |
| SP2530-HD | 3000x2500 | 98° ±2° | 400 | 35 | 5.2 |
| SP2542-HD | 4200x2500 | 98° ±2° | 550 | 35 | 5.2 |
| SP2737-HD | 3700x2700 | 98° ±2° | 600 | 50 | 5.55-9.8 |
| SP13361-HD | 6100x3300 | 98° ±2° | 1000 | 50 | 6.65-13.55 |
| Model | Glass size (mm) | Tilting angle (°) | Unloading capacity (kg) | Min. unloading time (s/glass sheet) | Installed power (kW) |
| XP2540J-HD | 2500×4000 | 85° ±2° | 800 | 15S | 8.0 |
| XP2560J-HD | 2500×6000 | 85° ±2° | 1000 | 20S | 9.7 |
| XP3040J-HD | 3000×4000 | 85° ±2° | 800 | 15S | 8.0 |
| XP3060J-HD | 3000×6000 | 85° ±2° | 1000 | 20S | 9.7 |
| XP3340J-HD | 3300×4000 | 85° ±2° | 1000 | 15S | 9.7 |
| XP3360J-HD | 3300×6000 | 85° ±2° | 1500 | 20S | 9.7 |
So far, 1000 sets of glass loading and unloading tables have been sold to many countries and regions. Among them, hundreds of the tables have worked with LISEC, Botterol and INTERMAG glass cutter or VON ARDENNE glass coating machine.
